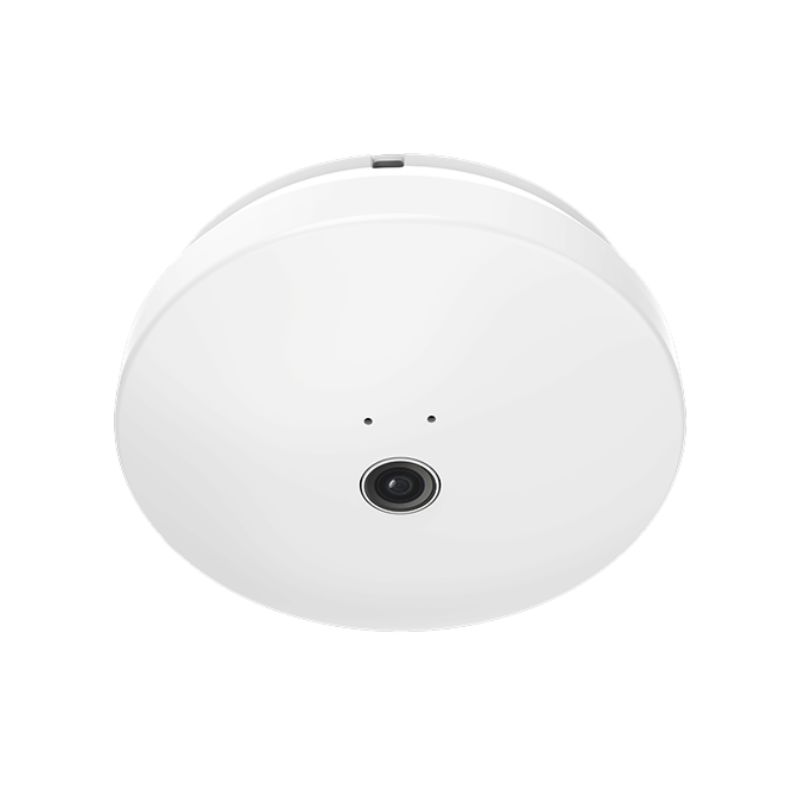

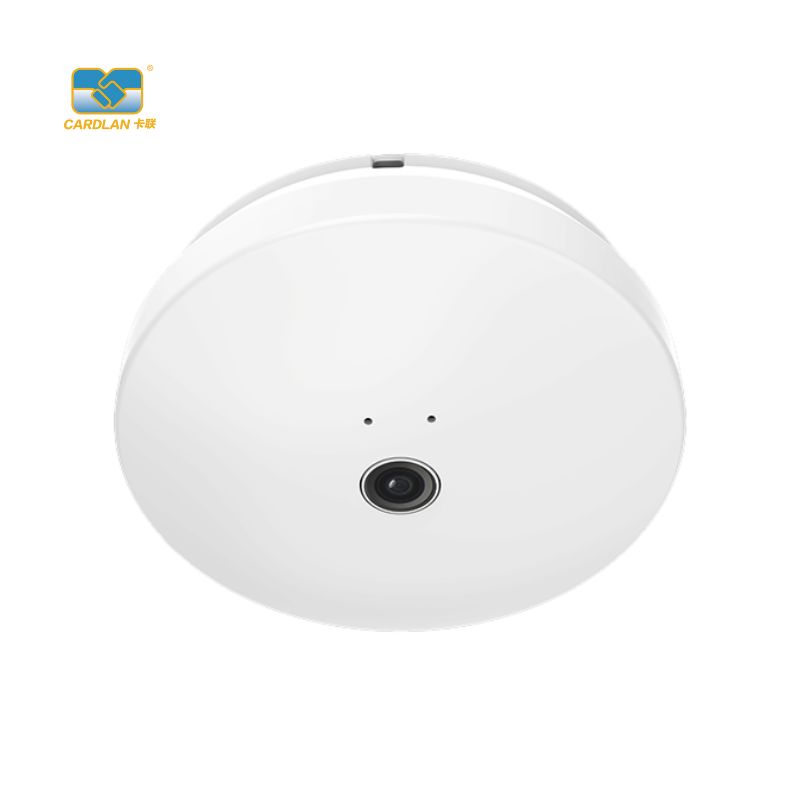

Ceiling-mounted People Counter for Accurate Foot Traffic Counting and Visitor Analytics

Item No.: CL-CM06
Our ceiling-mounted people counter delivers precise real-time visitor counter data and footfall counter analytics. Designed for accurate customer counting, it integrates seamlessly with existing systems for efficient shopper traffic monitoring.
Description
Description

Name People Counter/Visitor Counter/Footfall Counter/Flow Counter
Processor AI Computing Power CPU
OS Linux
Storage and Memory EMMC:4G-16G DDR:1G
Image Device Sony
Lens Wide Angle/1.8/2.1/2.8/4.0/12mm
Network POE/4G
Communication Protocol TCP/HTTP/RTSP/RTMP, etc
Built-in Database Support
Character Superimposition OSD Support
Onvif Protocol Support
Installation Height Range 1.8M-10M
Identify Width 0.5M-15M
Recognition Time <10MS
Operational Capability >=1.0Tops
Power Supply POE/10-60V
Power Dissipation <5W
Operating Ambient Temperature -20 to 60℃
  • Operating Humidity
5%-95%
Compressed Format H264/H265
Code Stream Secondary bitstream/secondary bitstream/primary bitstream

Encoding and Decoding Ability

2688*1536@30fps +720*480@30fps + 360*240@30fps;
Encoding simultaneously outputs and outputs
Main Material Aluminium alloy housing
Colour White
Size L104mm×H40mm
Weight <500g


Product Advantages


Structural and System Design Highlights

The ceiling-mounted configuration of this overhead people counter facilitates a discreet installation that minimizes interference with architectural aesthetics while maximizing coverage scope. Its 3d people counter technology incorporates advanced image processing algorithms, enabling precise differentiation between people and objects, reducing false counts. The system’s modular design allows straightforward integration with existing video and analytics platforms, maintaining scalability for expanding operations. Robust housing ensures durability under varied environmental conditions, and the device’s standardized interface supports interoperability with multiple software ecosystems, underscoring its flexibility for diverse infrastructural setups.


Superior Performance and User-centric Value

This customer counting machine provides reliable real-time footfall counter insights with high accuracy rates, contributing to improved decision-making and operational planning. Its focus on privacy-preserving data collection addresses compliance with data protection standards, reassuring institutional users. The system offers ease of maintenance through remote diagnostics and ongoing software updates, ensuring prolonged optimal functionality and minimal downtime. Its intuitive data output facilitates straightforward interpretation by operations teams, fostering better workforce management and improved customer experience. Overall, this solution delivers measurable effectiveness in monitoring shopper traffic counter flows, increasing managerial control and ROI potential.


Use Scenarios


Retail Environments Enhancing Operational Efficiency

In retail environments where precise customer traffic data is essential, this people counter plays a critical role in optimizing staffing and queue management. The device’s ability to accurately capture ingress and egress counts assists store managers in aligning resource allocation with real-time demand fluctuations. Its overhead installation above entrances minimizes interference with store layout and customer flow patterns. Integration with point-of-sale and workforce scheduling systems enables a comprehensive workflow adjustment, improving service quality and reducing operational costs. By leveraging visitor counter analytics, retailers can enhance promotional placement and spatial configuration tailored to shopper behavior.


Transportation Hubs Facilitating Passenger Flow Management

Airports and transit stations benefit from the deployment of this overhead people counter as a tool to monitor passenger throughput dynamically. The 3d people counter mechanism supports precise counting even in crowded, high-speed entry points, ensuring accurate traffic volume analysis. It supports compliance with safety regulations by delivering timely crowd density data to operational control centers. The system integrates effectively with broader passenger information systems and security infrastructure, enabling coordinated decision-making for crowd control and facility utilization. This alignment with critical transportation workflows improves both passenger experience and operational safety standards.






FAQ

What installation services do you provide for the ceiling-mounted people counter?

We offer door-to-door installation services conducted by our professional technicians. This ensures the ceiling-mounted people counter is set up correctly for optimal accuracy. Our team also provides 24-hour online support to address any installation or operational inquiries promptly.


Can the footfall counting system be integrated with existing analytics platforms?

Yes, our ceiling-mounted footfall counter is designed for easy integration with your current analytics software. This compatibility allows seamless data consolidation, helping you leverage foot traffic insights without disrupting existing digital infrastructure.


How do you ensure privacy while counting visitors?

Our system counts the number of people using advanced movement-recognition algorithms rather than identifying individuals. This privacy-preserving approach ensures accurate visitor counts without collecting personal or identifiable data, aligning with data protection standards.


Is maintenance and software support available after purchase?

We provide lifetime maintenance service for the software and a one-year warranty on hardware. Our 24-hour online service team is ready to assist with updates, troubleshooting, and technical support, ensuring your customer counter functions reliably over time.
