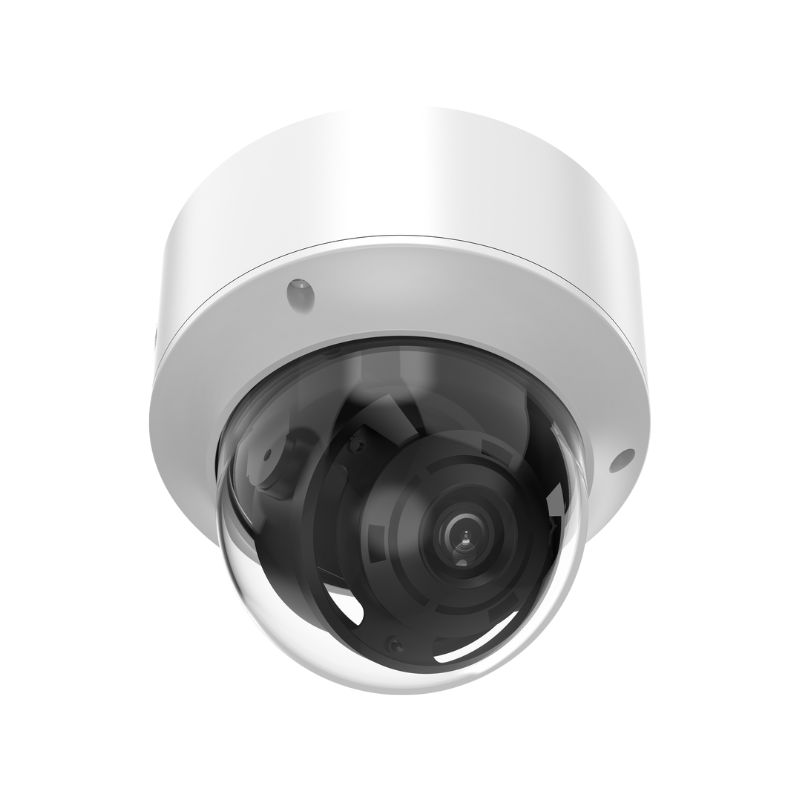

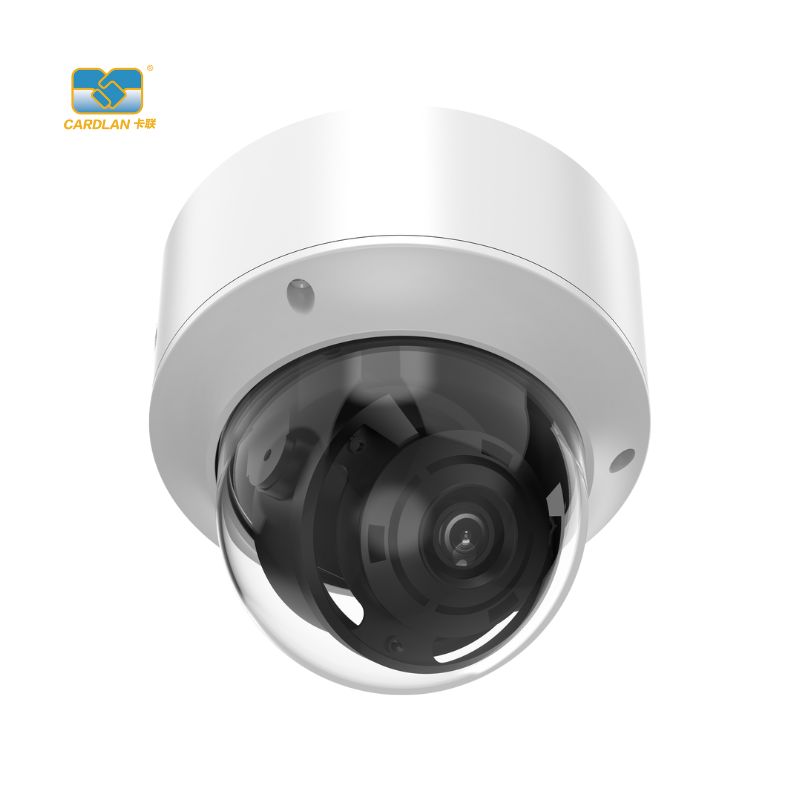

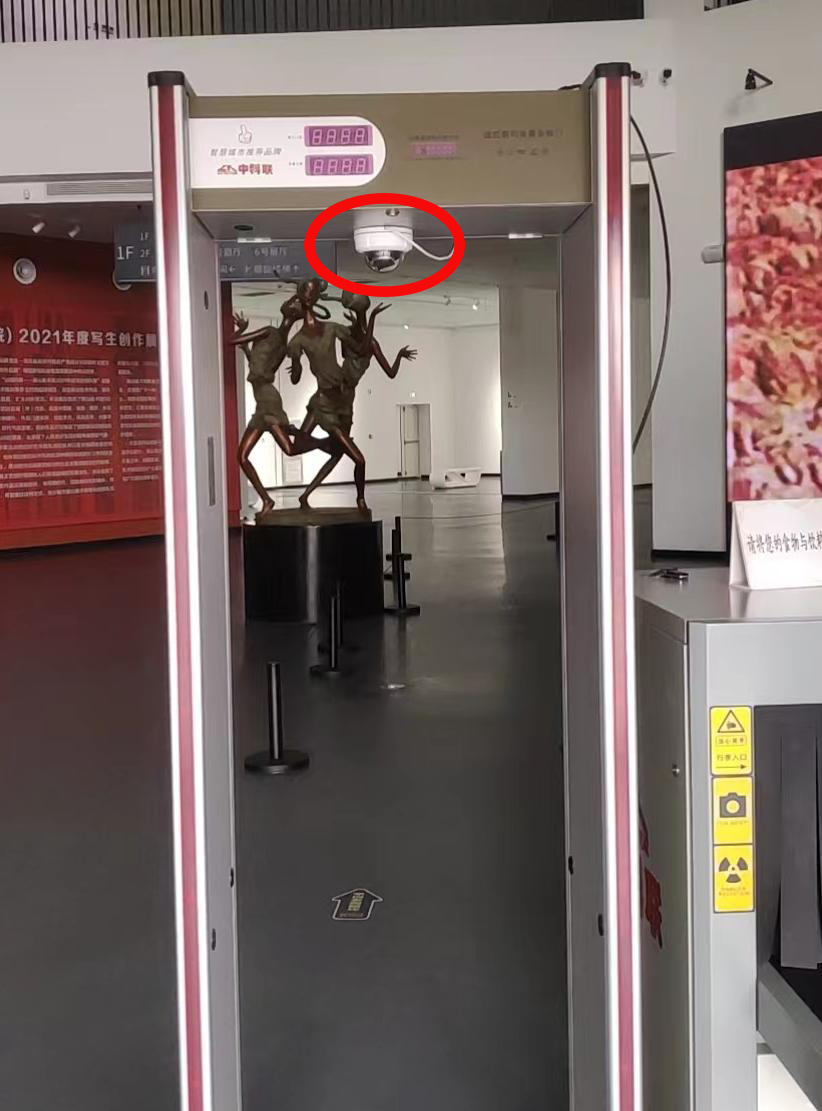

Dome People Counting Camera for Accurate Visitor Traffic Analytics and Footfall Counting

Item No.: CL-W56
Description
Description

Name People Counter/Visitor Counter/Footfall Counter/Flow Counter
Processor CPU
OS Linux
Storage and Memory Supports Micro SD card (128G)
Image Device Sony
Lens Angle: 0° to 355°; Vertical: 0° to 65°; Rotation: 0° to 355°
Network RJ45/4G
Communication Protocol TCP、RS485、RS232、UDP、HTTP、RTSP、RTCP、DHCP, FTP, DDNS、 PPPoE
Built-in Database Support
Character Superimposition OSD Support
Onvif Protocol Support
Installation Height Range 1.8M-10M
Identify Width 0.5M-15M
Recognition Time <10MS
Operational Capability >=1.0Tops
Power Supply POE/10-60V
Power Dissipation <5W
Operating Ambient Temperature -20 to 60℃
  • Operating Humidity
5%-95%
Compressed Format H264/H265
Code Stream Secondary bitstream/secondary bitstream/primary bitstream

Encoding and Decoding Ability

2688*1536@30fps +720*480@30fps + 360*240@30fps;
Encoding simultaneously outputs and outputs
Main Material Metal + Plastic
Colour White
Size 159mm×118mm
Weight <500g


Product Advantages


Design and Integration Advantages of the Dome Counting System

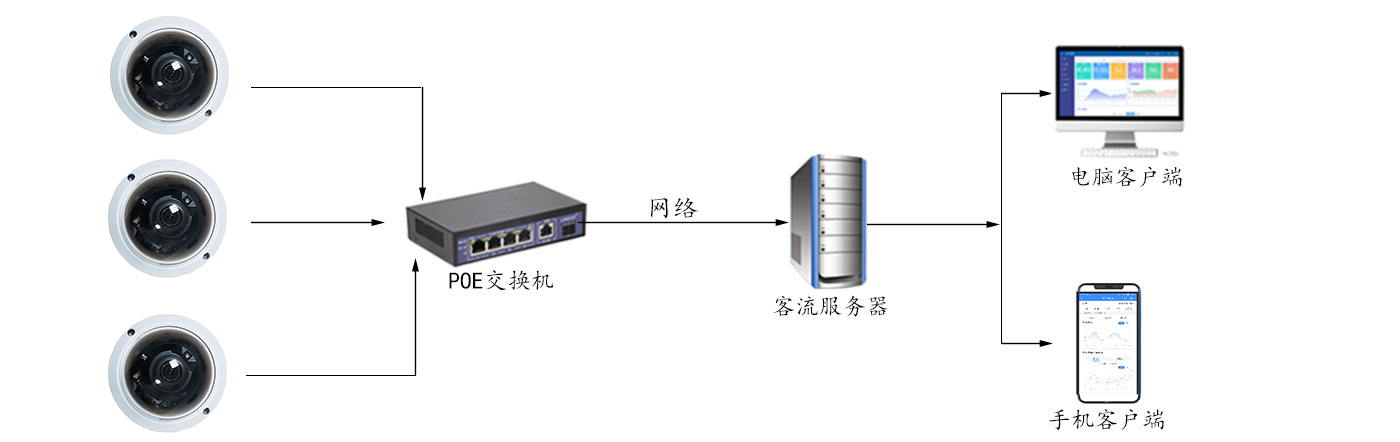

This people counting device features a dome housing for discreet ceiling mounting that blends with diverse architectural environments. Its system architecture supports modular connection with the Flowcounters-Smart analytics infrastructure, allowing flexible scalability and deployment across multiple sites. The hardware design emphasizes robustness and reliability, ensuring consistent operation under challenging conditions. The camera’s configuration prioritizes privacy by focusing solely on
count data without capturing personally identifiable information, aligning with regulatory compliance standards.


Performance and Usability Delivering Measurable Business Value

Equipped with AI-powered analytics, the people counter facilitates highly accurate count reporting critical for operational planning and ROI assessments. Its intuitive integration enables effortless synchronization with customer dashboards, driving actionable insights with minimal technical overhead. The dome form factor ensures ease of installation while maintaining high visibility and coverage. End users benefit from real-time visitor traffic data, which supports dynamic capacity adjustments and enhances resource allocation efficiency, making it a dependable tool for environment-specific footfall management.

Use Scenarios


Optimization of Retail Store Footfall and Staff Allocation

In retail environments, managing customer flow and ensuring optimal staffing levels is imperative. The dome footfall camera accurately counts visitor entrances and exits, enabling retailers to analyze peak traffic periods and customer dwell times. This data supports queue management and promotional effectiveness assessments while integrating with point-of-sale and workforce management systems. The device’s discrete ceiling installation preserves store aesthetics and operates reliably under varying lighting, ensuring uninterrupted retail traffic counting that informs data-driven operational decisions.


Enhancing Public Venue Safety Through Occupancy and Crowd Flow Monitoring

At public venues such as stadiums and transit hubs, effective crowd control and safety management are essential. This people counting device provides continuous visitor monitoring focused on real-time occupancy and movement analysis. Its AI-driven counting capabilities help security teams detect density spikes and optimize crowd distribution, facilitating compliance with safety protocols. Integrating with broader facility management systems, the device supports emergency response planning and operational adjustments, ensuring safer environments through precise and timely footfall analytics.





FAQ


How accurate is the Dome People Counting Camera in distinguishing people from objects?

We use advanced deep learning algorithms that focus on human detection, enabling the people counting device to accurately differentiate individuals from inanimate objects. This ensures reliable footfall data to support your operational decisions and visitor analytics.


Can the Dome People Counting Camera be integrated with existing analytics platforms?

Yes, our people counting camera is designed for seamless integration within the Flowcounters-Smart People Counter & Analytics System. It allows real-time data to be fed into dashboards and reports, providing comprehensive visitor flow insight tailored to your business needs.


What installation options are available for this people counter?

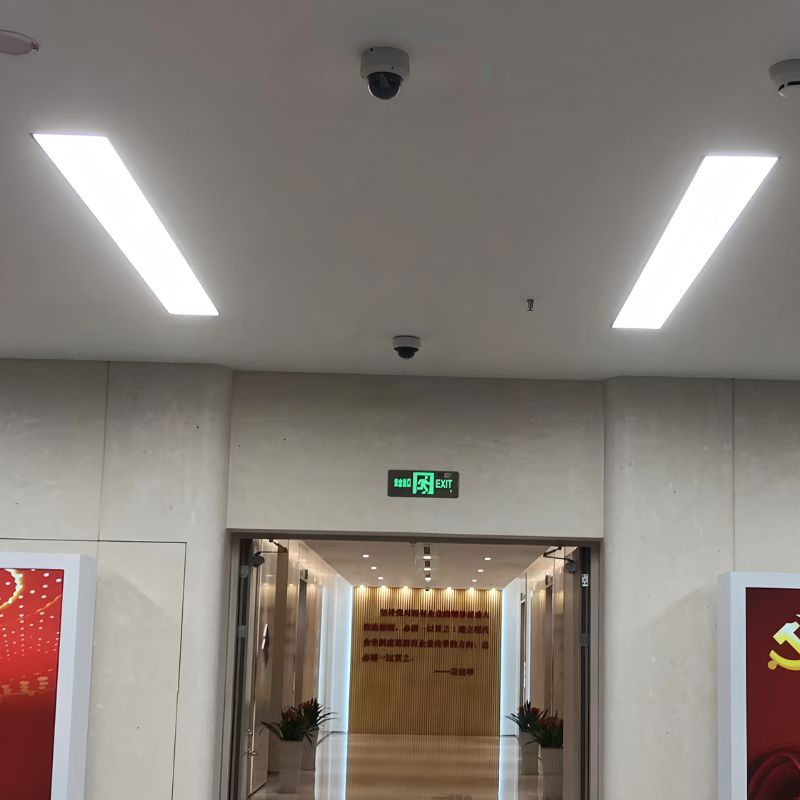

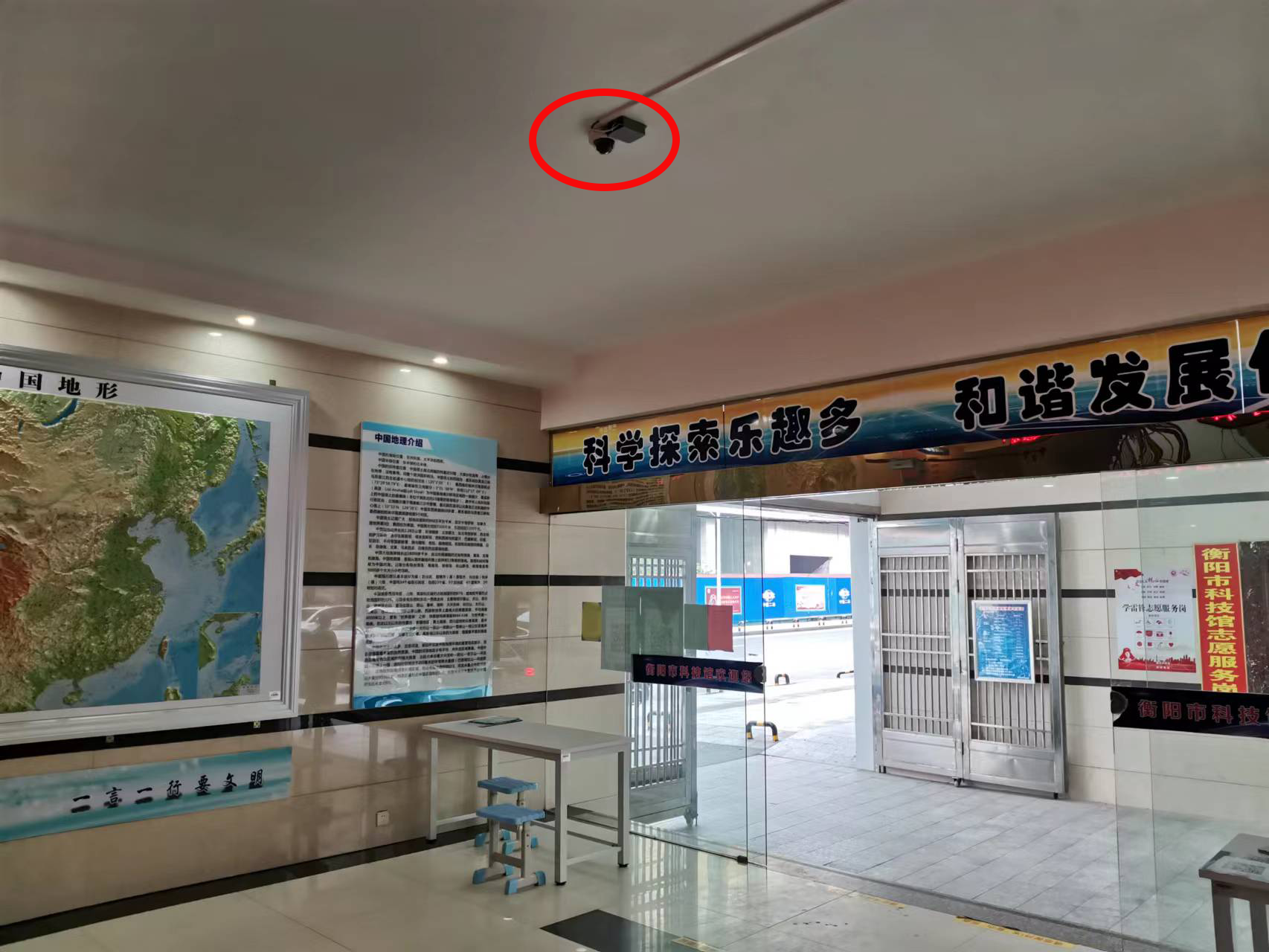

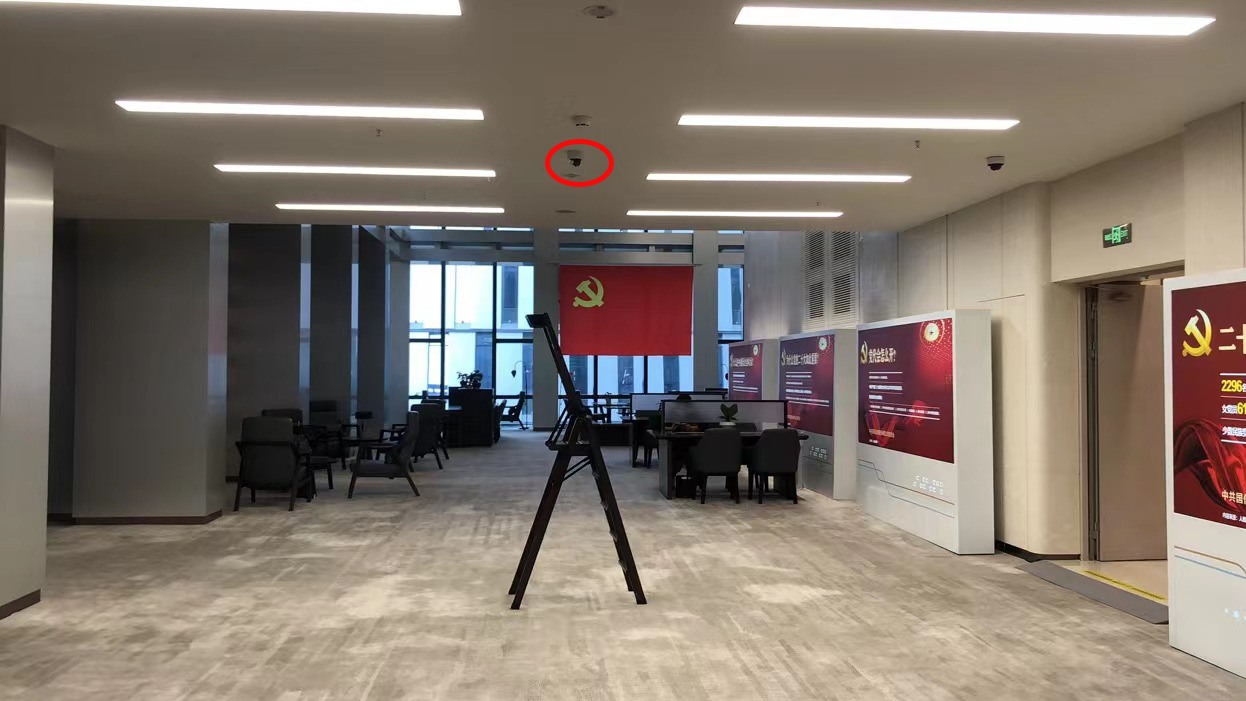

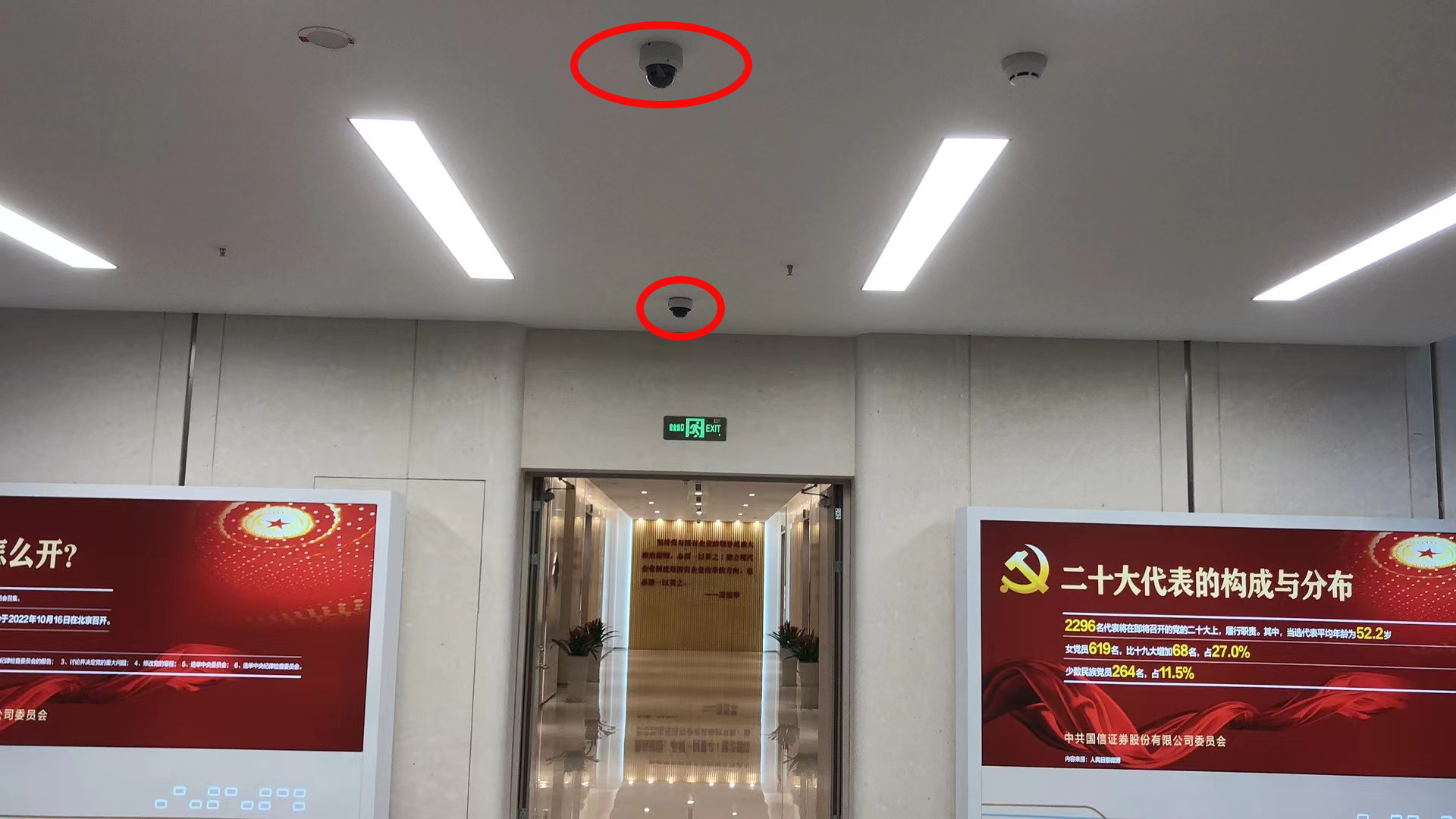

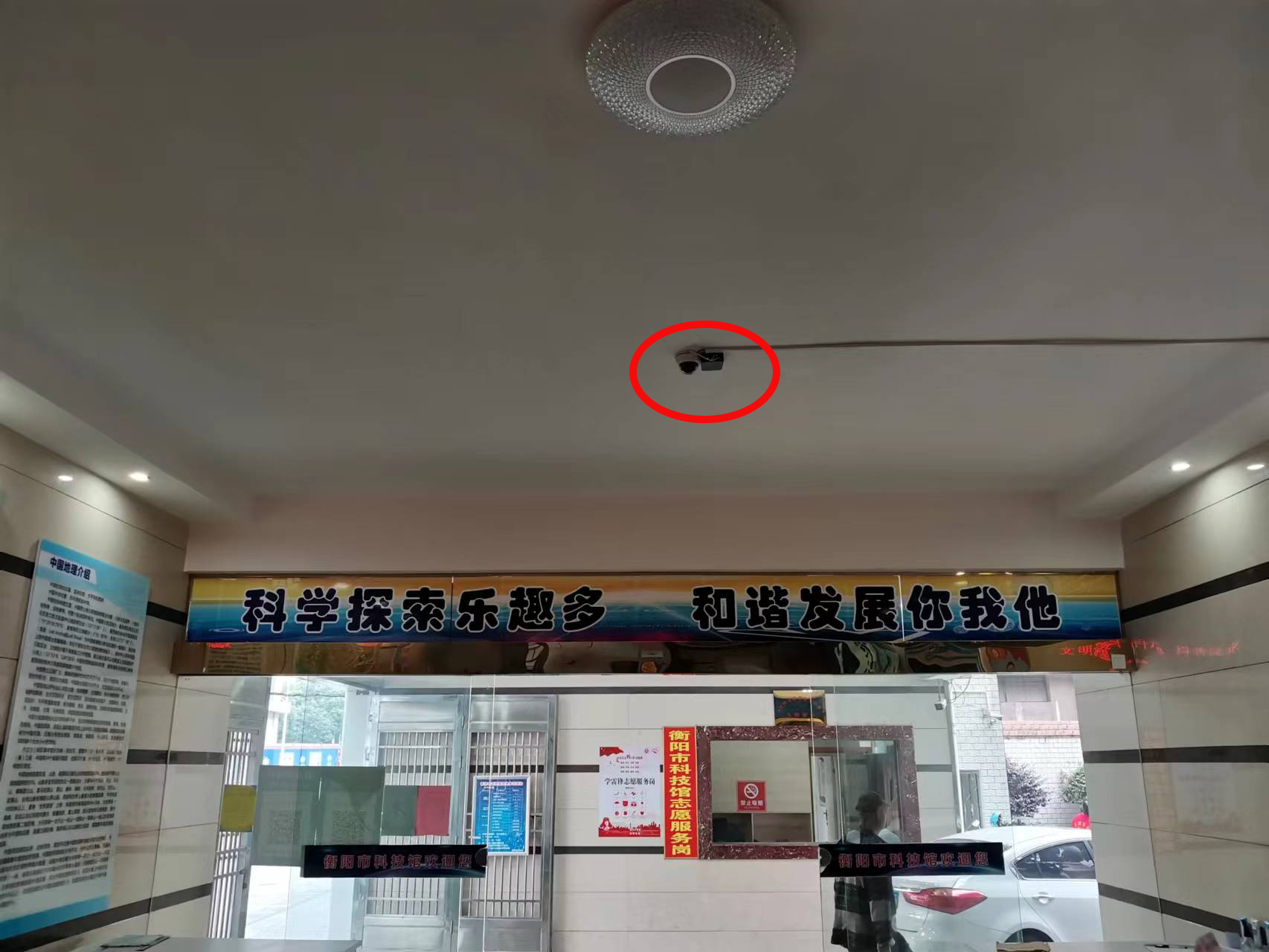

The dome design supports ceiling or ceiling fixture mounting, enabling discreet and efficient deployment. Our installation process prioritizes a stable setup for continuous monitoring, compatible with a variety of indoor environments such as retail stores and public venues.


Does the device collect or store any personal data of visitors?

Our system emphasizes visitor counting rather than identity tracking. We do not collect or store personal information, focusing solely on aggregated footfall metrics to maintain privacy and comply with data protection standards in your facility.
